Building Dashboards using Dataview Web Part

Dashboards using Dataview webpart

SharePoint Dashboards with Dataview webpart

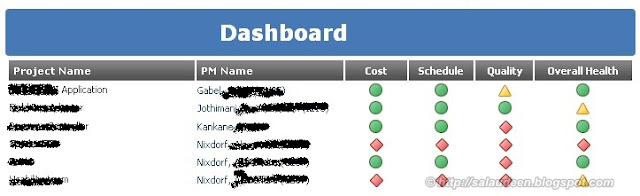

So, How to get this dashboard?
Create a list with desired fields, convert that to XSLT Data view web part or drop that list into Dataview web part.

Modify the XSL to get the indicators based on logic:

Such as:
 <!-- Display CPI Value --> <td style="text-align: center; width: 60px;"> <xsl:choose> <xsl:when test="format-number(sum($nodeset/@CPI),'#,##0.00;-#') &lt; 0.91"> <img border="0" src="{$varRedImage}" alt="{sum($nodeset/@CPI)}"/> </xsl:when> <xsl:when test="format-number(sum($nodeset/@CPI),'#,##0.00;-#') &gt; 0.90 and format-number(sum($nodeset/@CPI),'#,##0.00;-#') &lt; 0.96"> <img border="0" src="{$varYellowImage}" alt="{sum($nodeset/@CPI)}" /> </xsl:when> <xsl:when test="format-number(sum($nodeset/@CPI),'#,##0.00;-#') &gt; 0.95"> <img border="0" src="{$varGreenImage}" alt="{sum($nodeset/@CPI)}"/> </xsl:when> </xsl:choose> </td>
<!--Overll Health--> <td style="text-align: center; width: 63px;"> <!-- CPI --> <xsl:variable name="CPI_VALUE"> <xsl:choose> <xsl:when test="format-number(sum($nodeset/@CPI),'#,##0.00;-#') &lt; 0.91">25</xsl:when> <xsl:when test="format-number(sum($nodeset/@CPI),'#,##0.00;-#') &gt; 0.90 and format-number(sum($nodeset/@CPI),'#,##0.00;-#') &lt; 0.96">75</xsl:when> <xsl:when test="format-number(sum($nodeset/@CPI),'#,##0.00;-#') &gt; 0.95">100</xsl:when> </xsl:choose> </xsl:variable> <!-- SPI --> <xsl:variable name="SPI_VALUE"> <xsl:choose> <xsl:when test="format-number(sum($nodeset/@SPI),'#,##0.00;-#') &lt; 0.91">25</xsl:when> <xsl:when test="format-number(sum($nodeset/@SPI),'#,##0.00;-#') &gt; 0.90 and format-number(sum($nodeset/@SPI),'#,##0.00;-#') &lt; 0.96">75</xsl:when> <xsl:when test="format-number(sum($nodeset/@SPI),'#,##0.00;-#') &gt; 0.95">100</xsl:when> </xsl:choose> </xsl:variable> <xsl:variable name="Overall_Avg" select="($CPI_VALUE + $SPI_VALUE) div 2"/> <xsl:choose> <xsl:when test="$Overall_Avg &lt; 50"> <img border="0" src="{$varRedImage}" alt="{$Overall_Avg}" /> </xsl:when> <xsl:when test="$Overall_Avg &gt; 49 and $Overall_Avg &lt; 76"> <img border="0" src="{$varYellowImage}" alt="{$Overall_Avg}" /> </xsl:when> <xsl:when test="$Overall_Avg &gt; 75"> <img border="0" src="{$varGreenImage}" alt="{$Overall_Avg}" /> </xsl:when> </xsl:choose> </td>
Here is the overall flow:
